Viscous Liquid Filling Machine

Model No.︰

GF1502

Brand Name︰

greenforest

Country of Origin︰

China

Unit Price︰

-

Minimum Order︰

1 pc

Share on:

Product Description

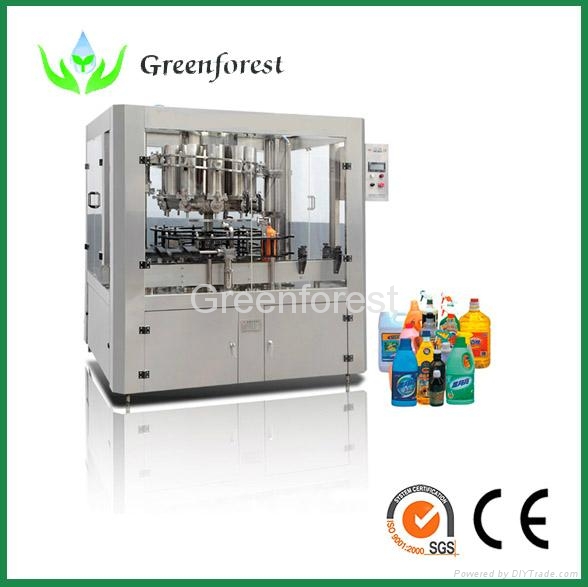

This filling machine is an automatic filling and capping machine.it adopt piston filling type,it could be applicable for all
kinds of oil ,fruit &vegetable sauce(with or without solid piece ),granule drink quantify filling and capping .no bottles no
filling and capping,PLC control system ,easy operation.



Technical Data:

Model

Number of washing filling and capping

Production capacity
Bottle per hour(0.5L)

Applicable bottle specifications (mm)

Power(kw)

Dimension(mm)

GF12/5

12, 5

2000-3000

0.25L-2L
50-108 mm
H=170-340mm

3.58

2100x1400x2300

GF16/6

16, 5

4000-5000

3.58

2460x1720x2350

GF18/6

18, 6

6000-7000

4.68

2800x2100x2350

GF24/8

24, 8

9000-10000

4.68

2900x2500x2350

GF32/10

32, 10

12000-14000

6.58

3100x2800x2350

GF40/12

40,12

15000-18000

6.58

3500x3100x2350



Payment Terms︰ T/T
