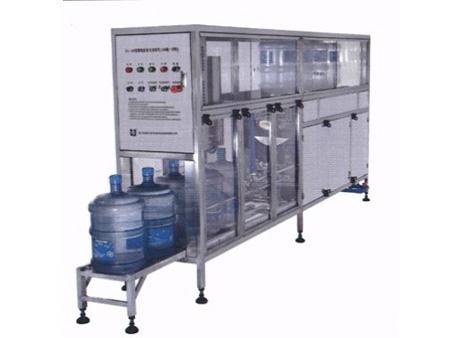

5 gallon bottled water filling machine

Model No.︰

GF-100BPH

Brand Name︰

GF

Country of Origin︰

China

Unit Price︰

US $ 5200 / pc

Minimum Order︰

1 pc

Share on:

Product Description

APPLICATION:

This filling line specailly is for producing 3 to 6 gallons bottled drinking water, like mineral water,distilled water and purified water. Optional capacity are: 60BPH, 100BPH, 150BPH,200BPH,300BPH,450BPH, 600BPH,900BPH,1200BPH.It integrates bottle washing,filling, and capping into one unit. Bottle washing staions can be customized according to customer's requirement.

Model

GF60BPH

GF100BPH

GF300BPH

Power

220V/60Hz, 380V/50Hz  three phases or customized

Production capacity (BPH)5gallon

60

100

300

Applicable bottle

From 3 gallon (11.3L) to 6 gallon(22.8L)

Applicable cap(mm)

58*40  Gravity hitting type

Required air compressor

0.17

0.17

0.17

Dimension(mm)

2360*740*1550

2940*740*1550

4180*920*1600

Weight(kg)

190

210

500

Pure water supply(M3/h

1.8

2.5

4.5









Payment Terms︰ T/T

Product Image
