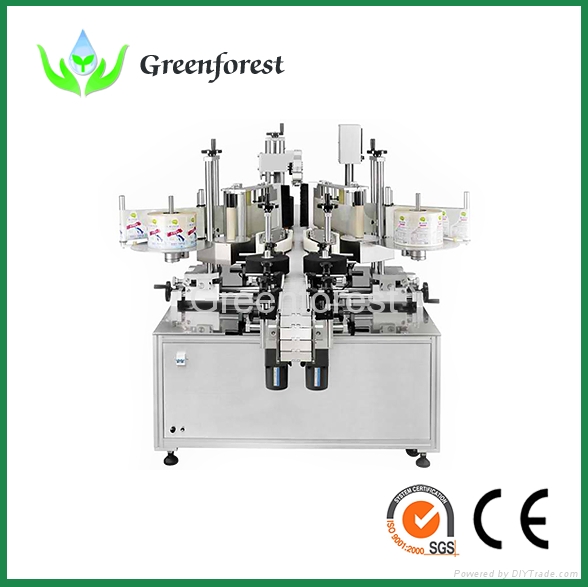

Front-back labeling machine
Model No.︰
GF-ML-8
Brand Name︰
greenforest
Country of Origin︰
China
Unit Price︰
-
Minimum Order︰
1 pc
Total 15 Related Items
Product Description
Feature:
1.Adopting Germany SIEMENS PLC system
2.Adopting easy operation large touch screen
3.Adopting Germany label sensor
4.Adopting Japan object sensor
5.The machine body is SUS304 stainless steel and 6063 aluminum alloy structure
6.Can be equipped with coding machine(optional)
Technical datas:
|
Standard Model
|
GF-ML-8
|
|
Label width(max)
|
180 mm
|
|
Label length
|
10-300 mm
|
|
Conveyer belt width
|
101.6mm
|
|
Diameter of bottle(max)
|
Φ110 mm
|
|
Outer diameter of label roll(max)
|
Φ350 mm
|
|
Inner of label roll
|
Φ76 mm
|
|
Labeling speed(max)
|
21m/min
|
|
Accuracy of labeling
|
±1 mm
|
|
Overall size(L*W*H)
|
3000*1700*1500MM
|
Advantages:
1.PLC system,sensitive screen
2.High-speed
3.Double sides label
4.Coding machine (optional)
5.Specially for red wine bottle
Payment Terms︰
T/T
|
|
|
|
|
