Full automatic shrink wrapping packing machine

Model No.︰

GF0601

Brand Name︰

GF

Country of Origin︰

China

Unit Price︰

-

Minimum Order︰

1 pc

Share on:

Product Description

Application range:
This type ot machine is suit for beverage, drinking water,beer wine and infusion bottle ect. packaging,which can be packed without tray and with a firm and beautiful  appearance


Advantages:
Applying imported PLC which can control the machine automatically,
with stabIe performance precise control
With the capacity of feeding and sorting bottles shrinking and cooling
shaping automatically
Inductive switch control the feeding of film wrich can control the
length of film and reduce the consumption
Imported tranducer control for the convey motor, which can can
realize stepless speed reguation

The machine dimension L5050*W3300*H2100
The weight 1.2t
Heat shrinkable furnace size L3700*W920*H1750
The biggest package size L600*W400*H350
Packing speed 8-12package
Conveyor belt height 920(adjustable100mm)
The rated power 380V 50HZ
Work pressure 0.6-0.8Mpa
The engine power 20kw





Payment Terms︰ T/T

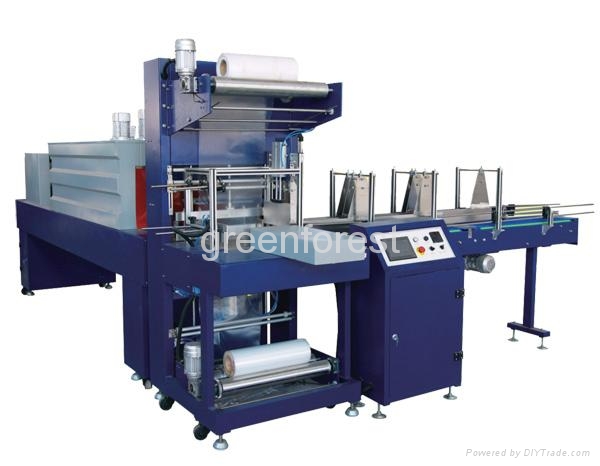

Product Image
