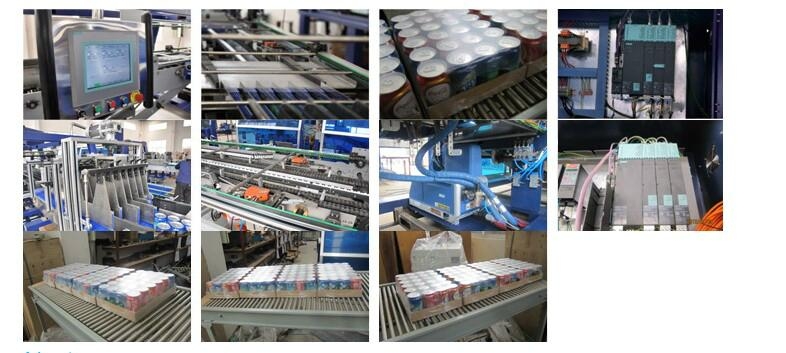

The aircraft used in the pallet with film packaging,widely used in drinks,beer,chemical,food,pharmaceutical and other industries.
The whole pneumatic expansion support film roll,for the film quickly takes about two minutes to change the film.
The film tension transportation,smooth,and precise control of the cutting film neat incision.
Serve control technology can maintain the mechanism of precise synchronization of advanced, reliable delivery.
The heating box, reasonable structure, heat insulation, high precision of temperature control.
Supporting German Siemens, Germany P+F, Japan SMC, Italy motorcycle Rio, the world's most advanced control
System components, equipment, stable operation.
Mechanical transmission components using after heat treatment of stainless steel or carbon steel and other materials; spraying the surface quality,
The antirust performance.
Technical data:
Deice dimensions
13500×1215×2150H mm
max size of packaging
600L×450×350H mm
Shrink film materials
PE、PVC、POF
Shirnk film thickness
80~90um
highest yield per minute
The 35-40 package (continuous variable speed)
highest yiled
The heating box (48kW 48kw/220v temperature, heat 24kw) The mechanical part of the power of 10kw
