The host end fittings：

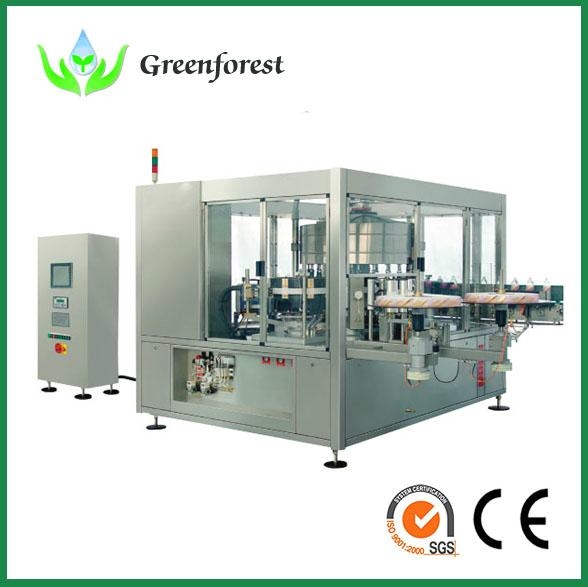

Round bottle labeling machine. For round bottle labeling, can use attachment; Conveyor belt is high-speed flat belt and conveyor belt width is 110 mm, conveying speed 0 ~ 26 m/min
Base: adjustable heightconveyor belt from the ground , from 610 to 1010 mm, applicable in different workplace or assembly line interface. Suitable for samples: standard is suitable for round bottle label.
touch screen： model（ TP170A ） origin（ SIEMENS ）
output module： model（ EM232 ） origin（ SIEMENS ）
stepper motor： model（ TS3630N2E3/1.4A ）origin（ Japan）
Check the electric eye model（ WF2-B4210 ）origin（ SICK ）
Seized electric eye model（ VRF-N ） origin（ SICK ）
performance characteristics：
Power Supply：one-way communication220V±2% , 50/60Hz , The whole machine power about1000W。
Dimensions：1.45M(L)*0.75M（W）*1.55M（H）。
Structural materials：SUS303/304stainless steel6061/6063aluminium alloy。
Conveyor belt specification：110mm(W)*2.2M(L)。
Conveyor Height：can adjust between0.75M-1.05M
Put line speed：0-26m/min（The speed synchronization with conveyor belt）。
LABEL WIDE:10~130mm,:15~300mm （Can design according to customer's request）
Posted content high:10~230mm （Can design according to customer's request）
Very large touch screen, simple operation
Apply paper roll diameter：φ76mm, Roll Outside Diameter：φ350mm
Labeling Precision：error of Before and after between ±1.0mm；up-down error between ±1.0mm
Labeling parameter on memory：10 group。
