This bottle blow molding machine is suitable for producing PET plastic containers and bottles from 50-2000ml. It is widely used to produce the carbonated bottle, mineral water, pesticide bottle oil bottle cosmetics, wide-mouth bottle etc.
Adopting double crank to adjust mould, heavy locking mould, stable and fast, Adopt infrared oven to heat the perform, the perform rotated and heated equally. The air system has been divided into two parts: Pneumatic action part and bottle blow part to meet the different requirements for the action and blow. It can provide sufficient and steady high pressure for blowing large irregular shaped bottles.The machine is also equipped with muffler and oiling system to lubricate the mechanical part of the machine. The machine can be operated in the step-by-step mode and the semi-auto mode. The machine is small with low investment, easy and safe to operate.

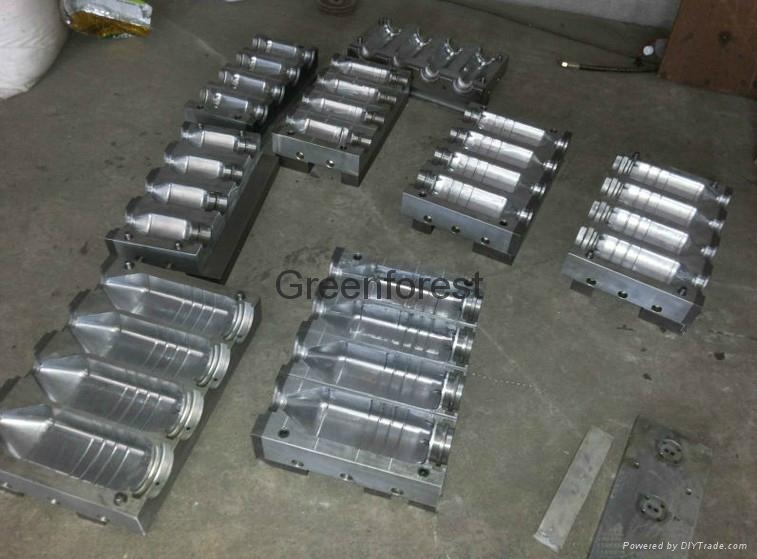

Auxiliary Equipments: : 1 Rotary infrared pre-heater 2 High pressure air compressor 3 Air cold dryer 4 precision air filter 5 high pressure pipe 6 mould 7 Spare parts and tools Modle JND-880-I Max. Volume of moulded product) 2000ml Max. Product capacity 800-1200PCS/H Max. Heating power 14kw Pressure of air supply 2.5mpa Max. Mould dimension 20*35*38cm Max. Shifting mould dimension 17cm Center distance between two bottles Min9cm max20cm Max. Stretched length 35cm Weight 650kg Main machinine Size 160*60*161cm Oven Size 187*63*145cm
