Specifications

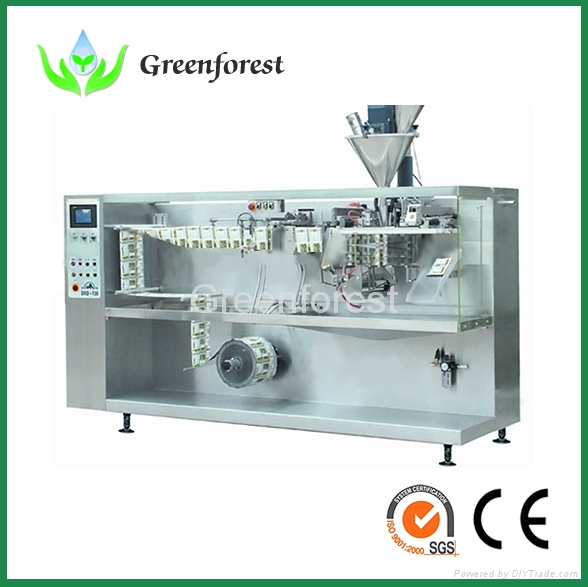

For the powder, liquid, viscous fluid and micro particle,the bagging product of three-side,four-side sealing
aluminum film bags. The machine used international advanced technology; it may be used in the bagging
product of three-side and four-side sealing aluminum film bag, shaping level and artistic.
The machine used the microcomputer PLC programmable control and photo electricity induction.
Its main electrical components are all imported. Its performance steady and reliable, operation convenient.
The equipment suits for the industry such as foodstuff, pharmacy, pesticide and daily chemical industry.
For the powder, liquid, viscous fluid and micro particle may choose different filling ways. Its packing measurement
accurate,packing speed fast, reaches to 80 bags per minute.
1 Main features
1.1 May use multiple international standard sealing mouths, forming multiple layers safety protection for the product,
to prolong the products quality guarantee period.
1.2 Flexible filling way may choose the different filling way such as worm, measurement pump, and piston and graduate,
suiting for multiple materials, ensuring accurate measurement.
1.3 Object packing process, the operation way simple and master easily, adjusting sizes convenient and swift.
1.4 Per the demand may change the three-side and the four-side sealing mouth at will.
1.5 The machine used servo motor material-discharging way, make the packing speed faster, measurement range larger
and more accurate, running smoother, especially suiting for the 24 hours continuous running.
2. Technological parameters
2.1 Maximum bag sizes 140(width) × 180(height)
2.2 Minimum bag sizes 60(width) × 70(height)
2.3 Packing speed 40-80bags/minute
2.4 Maximum volume 160ml
2.5 Measurement precision ±1.5%
2.6 Maximum film-roll diameter φ400mm
2.7 Rolls interior diameter: φ70-φ80mm
2.8 Total power 3kw
2.9 Contour sizes 2600×950×2100mm
