Double Head Label Sleeving Machine

Model No.︰

GF161-2B

Brand Name︰

greenforest

Country of Origin︰

China

Unit Price︰

-

Minimum Order︰

1 pc

Share on:

Product Description

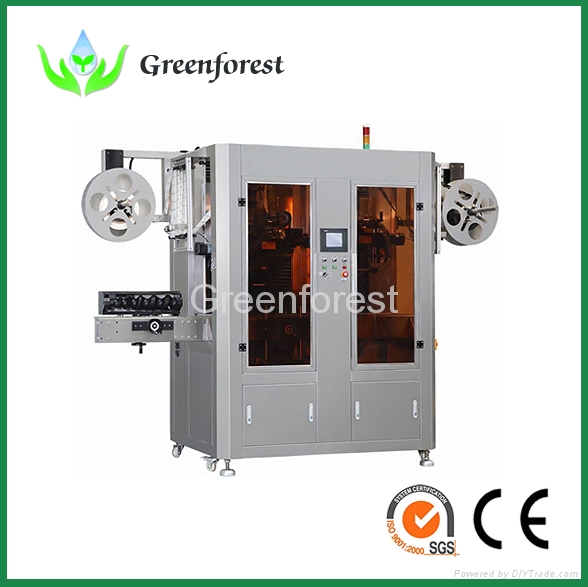

GF161-2B Double Head Label Sleeving Machine

In order to meet the needs of markets at home and abroad, our company has researched and developed double
head mechanism to meet the requirements of casting label for bottle mouth and bottle body.
Advantages: the machine can be used in two ways. It not only reduces a trapping label machine, but also proves as cost effective for our clients;
It reduces the length of conveying line and avoids the secondary transportation,so that it increases the production efficiency
and the capacity of floor area.of the equipment;
It also reduces stumbles in the process and increase the quality of product.


Electrical Configuration
It adopts equivalent PLC, positioning module, servo motor and frequency converter. In addition, its touch screen
is featured with a humanized operation.



Applicable Types of Bottles
With the accurate casting label, the equipment applies to the casting label and sealing of bottles with various shapes and hexagonal
oil drum, Suitable for larger bottle-type (3-5 liters barrel containers). The products are sold in quantity to the domestic and overseas markets.




Model GF161-2B GF161-2B GF161-2B GF161-2B
Input Power 2.6KW 3.0KW 4.5KW 6.5KW
Input Voltage ∮ 3, 220VAC ∮ 3, 220VAC ∮ 3, 220VAC ∮ 3, 220VAC
Production Effciency 2 x 150(Bottle/min) 2 x 250(Bottle/min) 2 x 350(Bottle/min) 2 x 450(Bottle/min)
Size of Host Machine L3000mm x W1200mm
x H2080mm
L3200mm x W1200mm
x H2080mm
L3800mm x W1200mm
x H2100mm
L3800mm x W1200mm
x H2100mm
Applicable Diameter of
Bottle Body
Φ28mm-Φ125mm Φ28mm-Φ125mm Φ28mm-Φ125mm Φ28mm-Φ125mm
Applicable Length of Label 30mm-250mm 30mm-250mm 30mm-250mm 30mm-250mm
Applicable Thickness of Label 0.03mm-0.13mm 0.03mm-0.13mm 0.03mm-0.13mm 0.03mm-0.13mm
Applicable Internal Diameter
 of Paper Tube
Free Adjustment Free Adjustment Free Adjustment Free Adjustment


Payment Terms︰ T/T

Product Image
