Features:

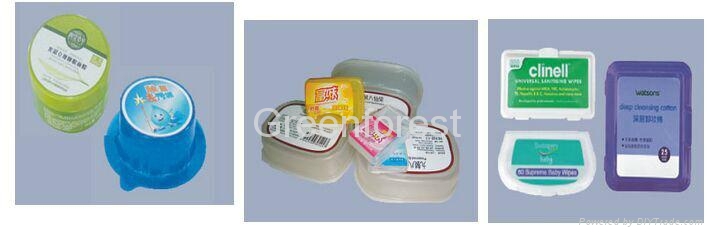

1.This machine is applied to cosmetics, electronics, food, medicine, stationery etc. in top labeling.
2.The labeling head adopts famous high precise servo motor, controls to convey the labels and ensures the labeling accuracy.
3.The controlling system adopts SIMEMS and famous panel, The human interface can be operated in Chinese and English. Operation is simple and easy to learn.
4.The separated clutch makes the strain more balanced, it can ensure accurate labeling.
5.Super high power AC motor and frequency inverter, helps to improve the accuracy of labeling.
6.The machine structure adopts enhanced rigidity designed, make the machine own a simple, elegant and stable appearance.
7.The labeling head can be adjusted at eight orientations, the labeling head can be inclined easily.
8.The conveyor line or special design can be added according to the labeled product.
Technical parameters:
|
Model
|
GF-LM-M6
|
|
Production speed
|
60m/min
|
|
Labeling accuracy
|
±1mm
|
|
Label outer diameter
|
Φ330mm
|
|
Label inner diameter
|
Φ76.2mm
|
|
Bottle diameter
|
30-200mm
|
|
Label max width
|
200mm
|
|
Power
|
380/220V 50Hz 1500W
|
|
Outline Size(L*W*H)
|
2000*800*1400mm
|
|
Weight
|
150kg
|
